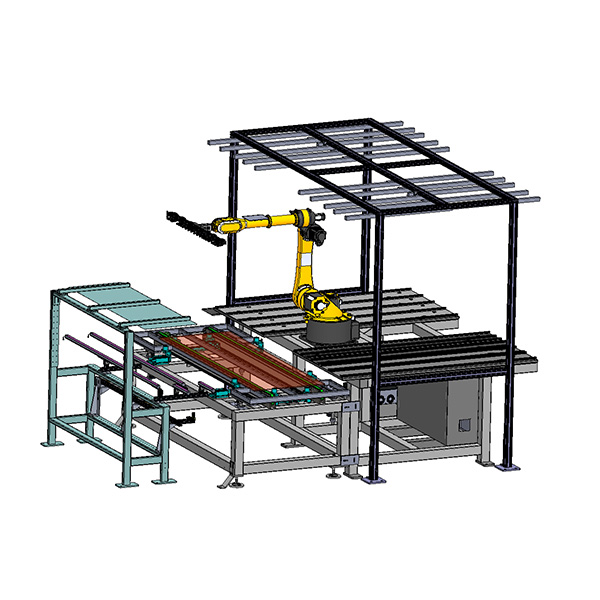

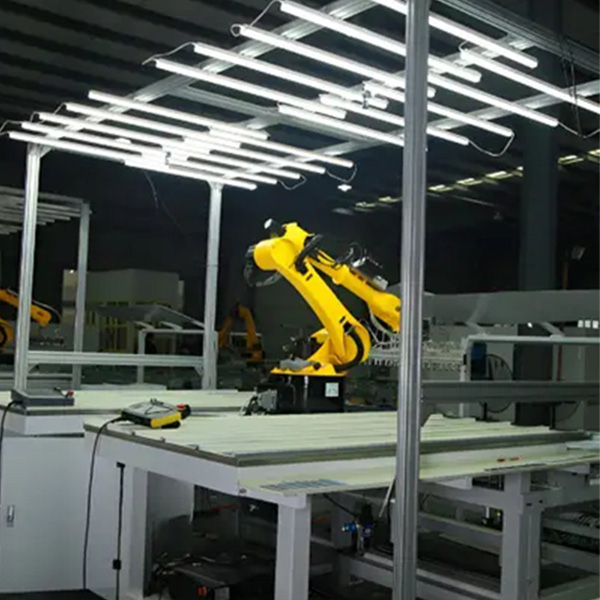

Photovoltaic Module Robot Layup machine,String layup :1. Function Description
1. Manually place the battery string in the material box, and the device is set with 4 material slots on each side.
2. The CCD locates the battery string in the XY direction
3. PV Module Robot Layup machine according to the set battery string number and position/electrode for regular typesetting;
4. The version and its parameters can be stored and backed up for later production
5. Photovoltaic Panel Robot Layup machine is compatible with 210/182/166/158.75 battery slitter type production
6. The assembly line will flow the glass into the typesetting machine to complete the typesetting and automatically flow out
7. Operation function: man-machine interface is powerful, parameter setting is simple and easy to understand, and product transformation is fast and accurate
2. Photovoltaic Module Robot placing string machine Performance Description
1) Glass alignment accuracy: ≤±1mm;
2) Cell breakage rate: ≤0.2% (positive A-class battery);
3) The equipment is fully automatic control, and the operation process does not require personnel operation;
4) Place string accuracy: front and back string distance error ≤± 0.5mm, string spacing ≤± 0.5mm.
5) Multiple sets of CCD to shoot the size string
3. Photovoltaic Panel Robot placing string machine Technical Parameter
Item | Performance Index | Item | Performance Index |
Scope Of Application | See Dimensions Of Accessory Assembly | Overall Dimension | 4300*3000*2200mm |
Equipment Weight | 1200KG | Working Pressure | 0.6-0.8Mpa |
Power Supply Requirement | 3ψ5W,380V,50/60Hz | Rated Load | 15kg |
Equipment Power | 4.5KW | Transfer Speed | 20m/min |
Use Environment | 25±5℃ | Humidness | ≤80% (No Condensation) |
Device Password Protection | Multi-Level Operation Password Protection | Working Beat | 7-9s/ String |
