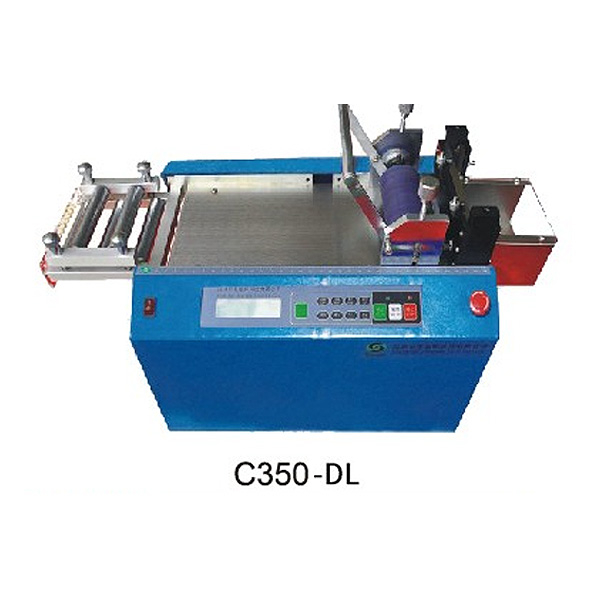

C350-DL
ETERPHE
Function Introduction
These PV Ribbon cutting machine series are designed for the cutting of solar photovoltaic welding ribbon, mainly used for PV ribbon, wire, copper, tin and other metal films or other ribbon materials.
1) Two sets of conveyor roller is designed to have a higher machining precision and speed, more stable operation,convenient operation, low noise, delicate and generous shape;
2) During cutting PV Ribbon process,the unique protective treatment effectively reduces the friction on the surface of PV Ribbon,fully retaining the original gloss of tin coating.It can effectively avoid blackening of PV Ribbon after friction.Effectively avoid the relevant friction resulted by the PV ribbon's blackening phenomenon.
3) Convenient operation, low operation noise, and exquisite appearance.
4) Suitable for the use of the PV Ribbon & PV module manufacturers.
Technical Parameter

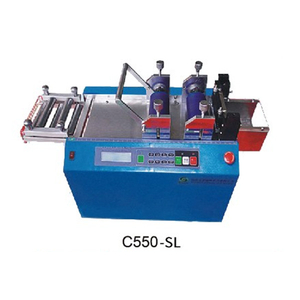

Model: C350/C550
Power Supply: AC220V210-260W
Processing Strips: 1-16PCS
Processing Materials: Tinned copper ribbon or other ribbon-type materials
Cutting Length: 1-9999.9mm
Cutting Width: 0.8-50.0mm
Cutting Thickness: 0.10-0.60mm
Cutting Accuracy: +(0.2+Lx0.002)mm
Count of Cutting: L=100mm,Speed:6(60PCS/min*10)
Information Storage: 10 ribbons
| Introduction： |
| This Photovoltaic ribbon cutting machine is developed for cutting and processing of interconnect ribbon (busbar ribbon) specially used for solar P-V modules.It adopts single board computer for controlling, and is equipped with advanced stepping motor. It covers th-e functions like high cutting precision of interconnect ribbon (busbar ribbon), straight material surface, smooth kerf and automatic counting. Its function and cutting efficiency reach the advanced international level.§ It can greatly improve the processing efficiency and reduce the waste of tinned copper ribbon.Its operation adjustment i-s simple and convenient;§ It is suitable for small and medium sized module factories. |
| Details： |
Model: C350-DL Power Supply: AC220V180W Dimensions: (L)350×(W)250×(H)320(mm) Weight: 30KG Processing ribbons：1-6 ribbons Processing materials: Tinned copper ribbon or other ribbon-type materials Cutting length: 1-9999mm Cutting width: 0.8-10.00mm Cutting depth:0.10-0.60mm Cutting precision:±(0.2+L×0.002)mm Count of Cutting : L = 100m, Speed:6 (78PCS/min*6ribbons) Information storage: 10 ribbons |
