PV Bus Bar Door Type Bending Machine

PV Bus Bar Door Type Bending Machine Function introduction
This equipment is designed & developed for the molding of PV Bus used in the photovoltaic double glass modules and double junction box. With advanced processing technology,it adopts these imported automation accessories in the aspect of control to make the operation achieve the best performance.
1） When the product effectively solves the artificial production of homework in the production of module,
2） Single and dual bending can be programed to switch freely to replace the relevant specification more conveniently;


Availability:



Inquire Add to Basket

Product Description

Function introduction

This Ribbon & Busbar Cutting with Bending 90 degree is designed & developed for the molding of PV Bus used in the photovoltaic double glass modules and double junction box. With advanced processing technology,it adopts these imported automation accessories in the aspect of control to make the operation achieve the best performance.

1）When the product effectively solves the artificial production of homework in the production of module,

2）Single and dual bending can be programed to switch freely to replace the relevant specification more conveniently;

Technical parameter

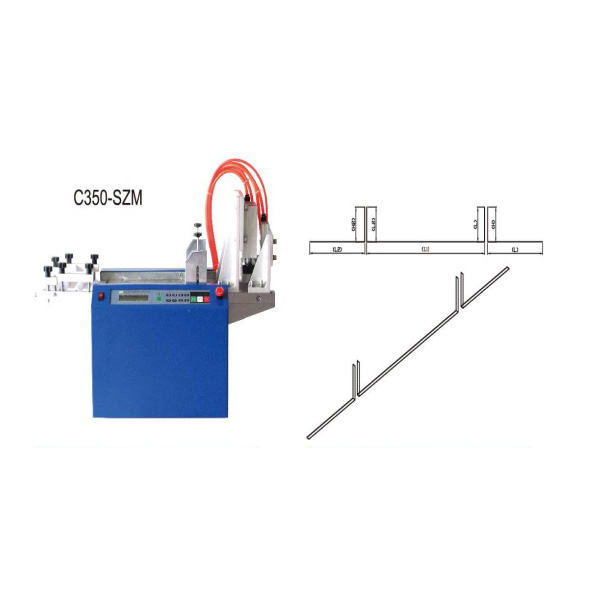

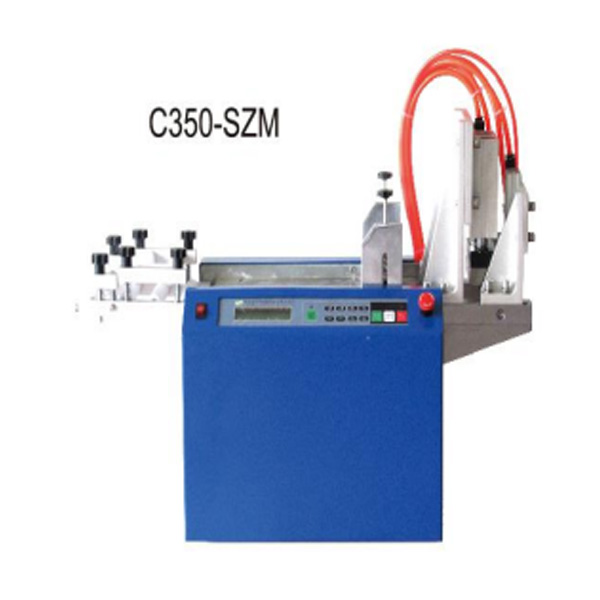

Mode：C350-SZM

Power Supply: AC220V150W

Air Pressure: >0.6 Mpa

Air Line Connection: C10mm

Dimension: (L)750x(W)280x(H)460mm

Weight: 28.5KG

Range of specifications: Width: 2.0-8.0 mm; Thickness: 0.10-0.60mm

Forming Specifications: Short Side:20-100 mm Long Side:300 mm or Less(Forming length size can be customized)

Forming Angle: 90°+5°
