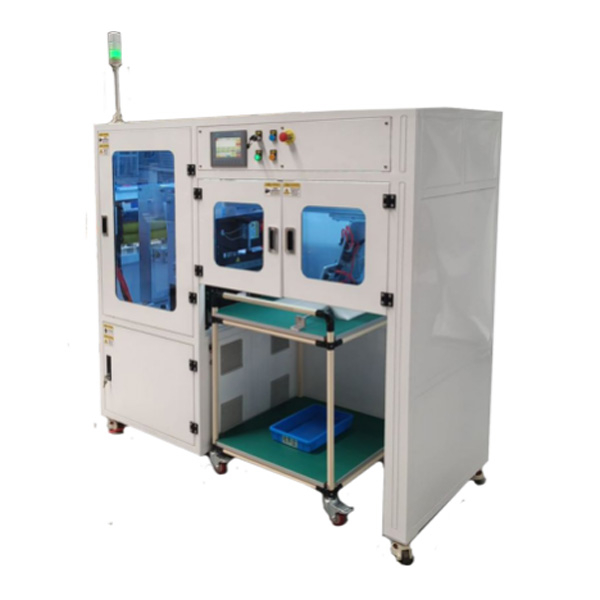

Photovoltaic Moudule EVA Punch cutting machine is developed and designed for EVA and backboard cutting and punching of small solar photovoltaic modules. It is compatible with various sizes, simple to operate, easy to adjust, suitable for cutting and cutting and punching modes, and adds tail material docking function, making material change simple and fast.
Offline EVA punch Cutting Machine parameters
Project | Specifications |
Model Number | YCH-ECC01 |
Power Source | AC220V |
Power | 2.5KW |
Air Source Pressure | 0.6-0.8Mpa |
Connecting Trachea | Φ10mm |
Machine Size | L3000mm*W800mm*H2100mm |
Processing Range | Length 100mm-700mm Width 80mm-300mm Thickness 0.2mm-0.5mm |

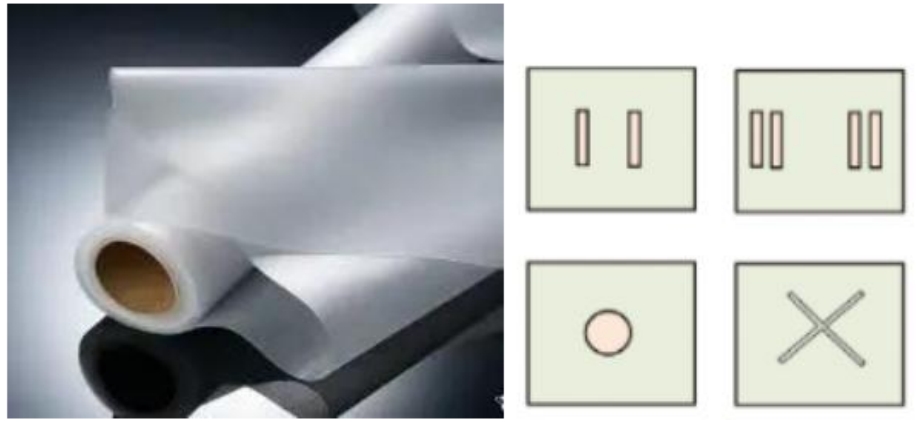

Punching | The shape and size are customized according to the drawing |
Cutting Accuracy | ±0.2+（0.2+L*0.002）mm |
Speed | 5-12pcs/Min |
Processed Material | EVA, TPT, PPE/PET or other similar materials |
