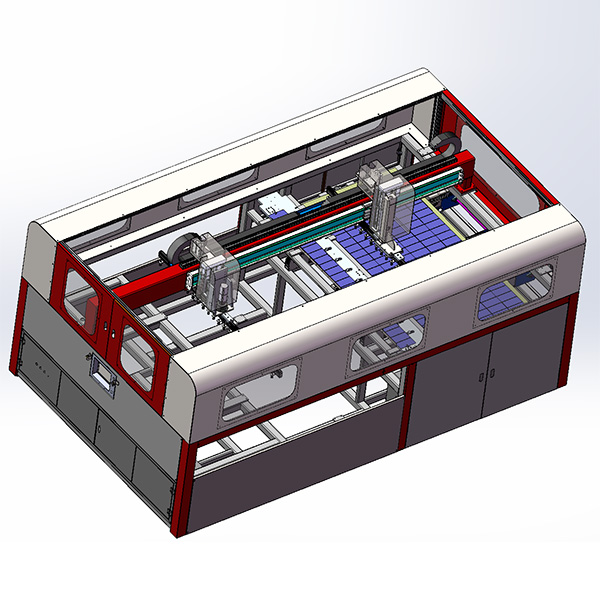

PV/Photovoltaic Module/Panel CCD AUTO Layup Machine, find complete details about Photovoltaic Module CCD Auto Layup Machine,Photovoltaic Panel CCD Auto Placing String Machine - Suzhou Eterphe Tech Co., Ltd.
1. Function Description
1. Manually place the bcell string in the material box, and the device is provided with 4 material slots.
2. The CCD locates the cell string in the XY direction
3. Photovoltaic Module CCD Auto Placing String Machine according to the set cell string number and position/electrode for regular laying up
4. The version and its parameters can be stored and backed up for later production
5. Photovoltaic Panel CCD Auto Layup Machine is compatible with 210 and 182 cell serial plates
6. The assembly line will flow the glass into the layup machine to complete the layup and automatically flow out
2. Photovoltaic Module CCD Auto Placing String Machine Technical Parameter
Item | Performance Index | Item | Performance Index |
Scope Of Application | See Dimensions Of Accessory Assembly | Overall Dimension | 4300*3000*2200mm |
Equipment Weight | 1200KG | Working Pressure | 0.6-0.8Mpa |
Power Supply Requirement | 3ψ5W,380V,50/60Hz | Rated Load | 15kg |
Equipment Power | 4.5KW | Transfer Speed | 20m/min |
Use Environment | 25±5℃ | Humidness | ≤80% (No Condensation) |
Device Password Protection | Multi-Level Operation Password Protection | Working Beat | 10-12s/ String |
