| Isolation Strip/EVA Slot Punch Machine, find complete details about Solar Module Teflon high temperature cloth punch and cut machine,Solar module Bus Bar Cutting machine, Solar ribbon cutting machine- Suzhou Eterphe Tech Co., Ltd. Introduction： |

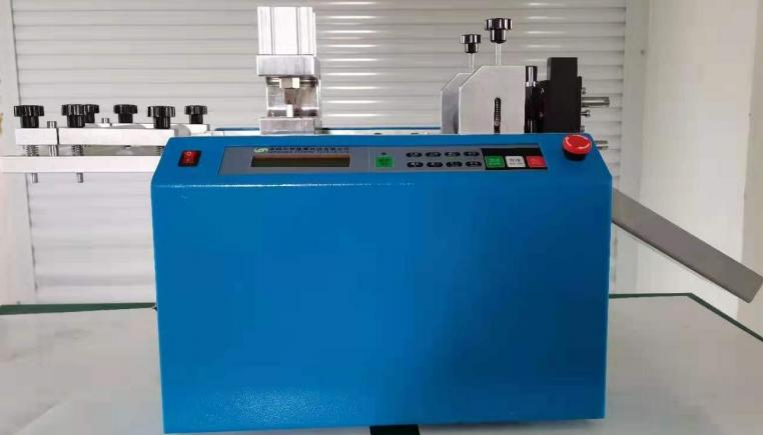

| PV Module Teflon high temperature cloth punch and cut machine is designed and developed for punching and forming of EVA / isolation ribbon / backplane and other adhesive films used in photovoltaic double glass modules, half-cell modules and conventional modules. With the development of advanced processing technology, imported automatic parts are used in the control of the equipment to achieve the best performance The product effectively solves the tedious work of manual production in module production; The equipment is compatible with single hole, double hole and fixed length cutting. The program of three product forms can be freely switched, and one machine can be used for multiple purposesCustomized punching shape is acceptable |
Model： C350-CQC
Power supply： AC220V 210W
Air pressure： 0.6~0.8 Mpa
Air line connection： ¢8mm
Dimensions ： （L)750*(W)280*(H)560(mm)
Weight： 35.0KG
Range of specifications： Material width：30.0-80.0mm
Material thickness： 0.25-0.40 ㎜(can be customized）
The shape and size of the forming hole are customized according to the drawing offered by the customer.
Cutting precision: Long side≤±0.2+（L*0.002mm)
Production speed ： 30pcs/Min (the production capacity will be changeable with the required different length of PV Bus)
Processing article number： 1
Processing material： EVA，TPT，EPE ，Teflon cloth，or other ribbon/banded materials
