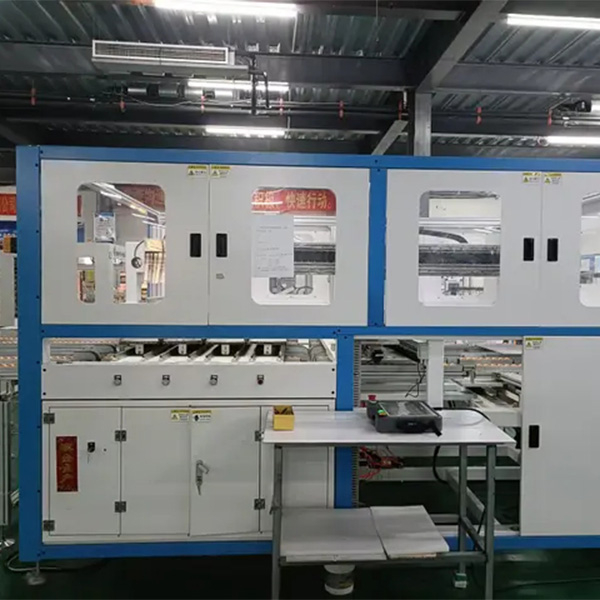

PV/Photovoltaic Module/Panel Layup Machine,Photovoltaic Module Gantry Layup Machine
1. Function Description
1. Manually place the cell string in the material box, and the device is provided with 4 material slots.
2. The CCD locates the cell string in the XY direction
3. Typesetting machine according to the set cell string number and position/electrode for regular typesetting;
4. The version and its parameters can be stored and backed up for later production
5. Photovoltaic Module Layup Machine is compatible with 210 and 182 cell serial plates
6. The assembly line will flow the glass into the typesetting machine to complete the typesetting and automatically flow out
2. Photovoltaic Panel Layup Machine Technical Parameter
Item | Performance Index | Item | Performance Index |
Scope Of Application | See Dimensions Of Accessory Assembly | Overall Dimension | 4300*3000*2200mm |
Equipment Weight | 1200KG | Working Pressure | 0.6-0.8Mpa |
Power Supply Requirement | 3ψ5W,380V,50/60Hz | Rated Load | 15kg |
Equipment Power | 4.5KW | Transfer Speed | 20m/min |
Use Environment | 25±5℃ | Humidness | ≤80% (No Condensation) |
Device Password Protection | Multi-Level Operation Password Protection | Working Beat | 10-12s/ String |
