YCH-C01

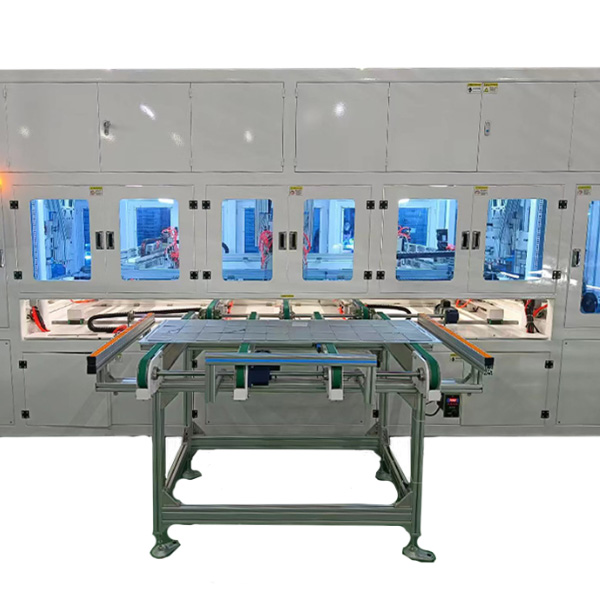

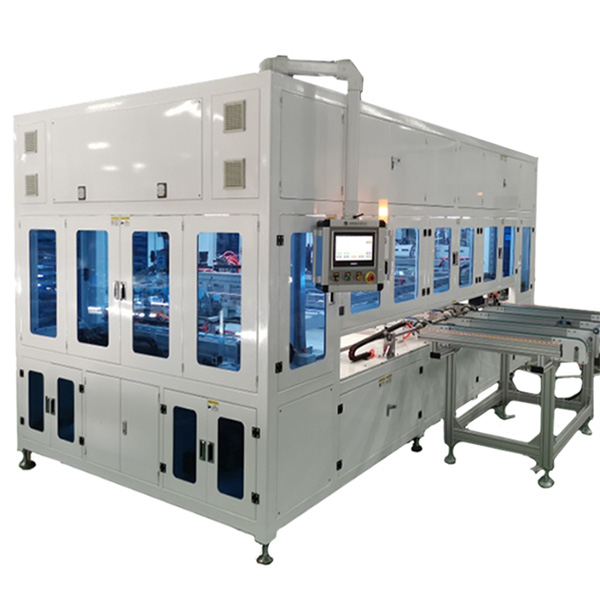

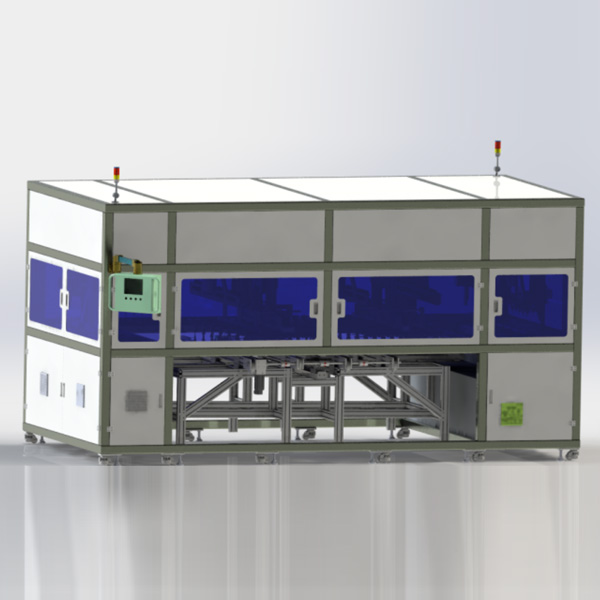

PV/Photovoltaic Module/Panel Bus Bar Welding Machine, find complete details about Solar module soldering Bus Bar machine,Auto Bussing - Suzhou Eterphe Tech Co., Ltd.
Function Introduction
◎It can make 156/178/182 /210 cells with super compatibility, and can realize the welding of the bus bar at both ends of the half-cell module, the conventional whole module and the double glass module.
◎Modular production of bus bar, 5-20kg feeding by shaft,L-shaped, U-shaped and straight bar cutting at both ends.

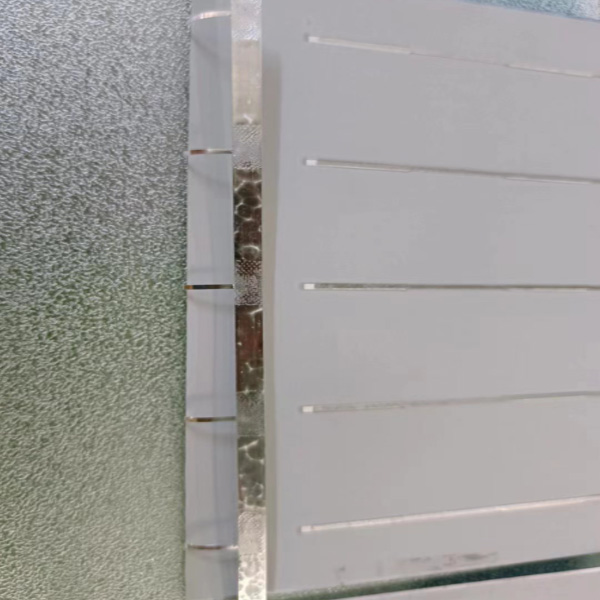

◎Vacuum adsorption of cell string and suspended welding of bus bar.
Technical Parameter
Model: YCH-HL-2500 |
Supply Voltage: AC380V , 50-60Hz , 3P+N+PE |
Rated Power: 18KW |
0.6-0.8Mpa |
Welding Method：Hot Air Welding |
Bus Bar Specification: Spool Package, Thickness 0.25-0.4mm，Width 5-8mm |
Cell Specification: Whole, Half, Multi BB |
Take Time: 25-30s/Pcs |
Module Size: L1600-2500mm*W960-1400mm |
Equipment Size: L4600*W2300*H2600mm |
Equipment Weight：About 2500kg |
Control System: Touch Screen, Chinese And English Mode, Support Remote Maintenance |
