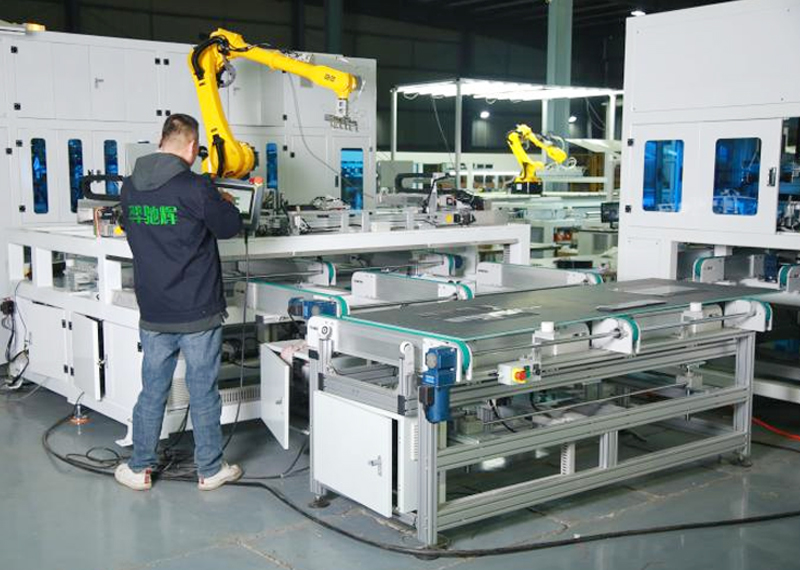

In the mass production of photovoltaic (PV) modules, the automatic busbar soldering machine is a core piece of precision equipment that connects cell strings and ensures circuit continuity; its soldering precision and stability directly determine the module's electrical conductivity, mechanical reliability, and 25-year outdoor service life. Defects in busbar soldering quality can easily lead to issues such as cold joints, detachment, cell cracking, and excessive thermal degradation, resulting in risks like power loss and operational failures. To standardize equipment operation, stabilize production quality, and extend equipment lifespan, the following guidelines outline the precautions for the entire application process of the automatic busbar soldering machine, based on its operating principles and PV production standards.
Standardized pre-startup checks are fundamental to avoiding batch soldering failures and preventing abnormal equipment wear; a three-fold verification process—covering the environment, equipment, and materials—must be strictly implemented to ensure the machine is not operated with existing hazards.
Regarding the production environment, the workshop must be kept clean, dry, and dust-free, with the temperature controlled between 18–28°C and humidity maintained at 40%–60% to prevent electrical short circuits caused by moisture or soldering precision issues resulting from dust accumulation. Additionally, the equipment must be placed on a level, stable workbench with a secure grounding system to prevent static electricity buildup from damaging solar cells or precision electronic components. Operation is strictly prohibited in environments with poor ventilation, excessive dust, or high levels of corrosive gases, as residual soldering fumes and component corrosion can compromise equipment stability.
Inspections of the equipment itself must be comprehensive and meticulous, prioritizing the electrical system, drive system, and core soldering components. Verify that power and signal cables are free from damage or loose connections, electrical cabinet vents are unobstructed, and the emergency stop button is responsive. Check that conveyor belts, guide rails, and suction cup assemblies operate smoothly without jamming, misalignment, or deformation; ensure suction cup air pressure meets standard thresholds for precise pickup and positioning of cell strings and busbars. Finally, clear away debris, solder dross, and dust from the soldering platform, soldering fixture, and the area surrounding the soldering head to ensure the workspace is clean and unobstructed. Material verification is critical; select busbars that match specifications and are free from oxidation, deformation, stains, scratches, or kinks. Use photovoltaic-grade flux, ensuring it meets concentration standards and is free of crystals or impurities; filter the flux before use to prevent nozzle clogs that could compromise coating quality. Additionally, verify the solar cell model—matching equipment parameters and ribbon paths to specific cell architectures (such as PERC or BC) beforehand—to eliminate mismatches between materials and equipment settings.
The automatic busbar soldering machine is a precision device integrating temperature, pressure, and timing controls. Since parameter accuracy directly determines soldering quality, arbitrary use of default settings or blind adjustments is strictly prohibited; precise calibration based on actual production conditions is required.
Perform a no-load test run upon startup, letting the equipment idle for 3–5 minutes to observe the transmission, positioning, and heating systems. Proceed to test soldering only after confirming the absence of abnormal noises, misalignment, or temperature irregularities. Use materials from the same batch for test soldering; rigorously inspect the first soldered unit and fine-tune parameters based on its quality. Mass production should only commence after standard production parameters have been established.
Core soldering parameters must be precisely controlled, adhering to the principle of "secure soldering without damaging the cell." Soldering temperatures are typically maintained between 200°C and 350°C, adjusted according to busbar specifications and cell types. Excessively low temperatures result in insufficient flux activation and weak or detached joints, while excessively high temperatures can cause micro-cracks in cells, ribbon oxidation, and excessive module thermal degradation. Heating and pressure-holding times must align with temperature settings; avoid unreasonable configurations such as short-duration high heat or long-duration low heat. Calibrate soldering pressure carefully: excessive pressure can crush cells or cause micro-cracks, while insufficient pressure leads to poor contact at the interface and weak solder joints.
Furthermore, stabilize flux supply parameters to ensure uniform coating and appropriate dosage. Excessive coating can generate solder dross and corrode modules, whereas insufficient coating leads to poor wetting and compromises solder joint strength. Regularly inspect the flux supply system and promptly clear any crystallized residue from the nozzles to ensure a stable supply.
During mass production, maintain continuous monitoring, adhere to standard operating procedures, and implement timely corrective actions. Strictly prohibit non-compliant operations and unattended running to ensure consistent welding quality and equipment safety.
Standardize material placement; when positioning cell strings, strictly distinguish between positive and negative terminals and maintain a uniform orientation to prevent welding failures or circuit faults caused by polarity errors. Maintain stable tension during the stretching and cutting of busbars to ensure uniform lengths and clean cuts, avoiding issues such as stretching deformation or uneven sizing that could lead to misaligned welding positions or inconsistent solder joints. Handle materials gently during loading and unloading—avoiding impacts or dragging of solar cells—to minimize the risk of micro-cracks at the source.
Monitor equipment status in real-time during production, focusing on the operating conditions of the temperature control, drive/positioning, and flux systems. Observe the stability of the closed-loop temperature control to detect any sudden spikes or drops; verify the precision of conveyor feeding and vacuum-cup positioning, ensuring there is no misalignment, stalling, or pickup failure; and check that flux spraying is uniform, with no clogging, supply interruptions, or dripping. Immediately halt and power down the machine to investigate any anomalies—such as unusual noises, parameter fluctuations, or welding deviations—and strictly prohibit continued operation with faults to prevent batch defects and equipment damage.
Strictly prohibit opening covers, touching the welding head, or adjusting operating parameters during production. Do not clean off welding spatter or wipe components while the equipment is running; this prevents mechanical crushing or high-temperature burns and avoids parameter disruption or positioning errors caused by human contact. Periodically clean up welding spatter and dust in the welding zone during each shift to maintain a clean workspace and ensure a stable welding environment.
Welding quality is central to the overall quality of photovoltaic modules. Establish a comprehensive inspection mechanism—comprising initial inspection, patrol inspection, and final inspection—to promptly identify welding defects and prevent defective products from proceeding to the next stage of production. Focus on inspecting solder joint quality; acceptable joints must be shiny, fully wetted, and free from defects such as cold joints, missed welds, false welds, or excessive solder buildup. Busbars must be tightly bonded to the cell strings without misalignment, lifting, or looseness. Address common quality issues precisely: if cold joints or weak welds occur, increase the welding temperature or extend the heating time; if there is excessive solder slag or blackened joints, clean the nozzle, adjust flux dosage, and optimize temperature control parameters; if micro-cracks or breakage in cells are detected, immediately verify welding pressure and temperature parameters while checking the positioning accuracy of the suction cups.
Simultaneously, test module circuit continuity to prevent open circuits or short circuits caused by welding deviations. Perform preliminary sorting of welded modules; mark and store defective units separately. Unauthorized or non-compliant rework is strictly prohibited; rework must adhere to process standards, controlling temperature and frequency to avoid secondary damage to cells or accelerated module power degradation.
Standardized maintenance is key to ensuring long-term stable operation, extending equipment lifespan, and maintaining welding precision. A full-cycle maintenance mechanism—incorporating daily cleaning, periodic inspections, and timely parts replacement—must be implemented.
Carry out daily cleaning: after shutdown, use dry compressed air (≤0.5 MPa) to remove dust and solder slag from equipment surfaces, vents, and drive components; wipe the welding head, feeding tracks, and suction cup assemblies with specialized cleanroom wipes. Never use water or corrosive cleaners on precision electrical components such as electrical cabinets, temperature control modules, or sensors, to prevent short circuits from water ingress or component corrosion. Clean the flux container every shift to remove residual impurities and crystallization, and periodically replace the filter sponge to prevent pipeline clogs.
Conduct periodic inspections on schedule: check drive belts, guide rails, and bearings daily for wear, and tighten any loose screws or connectors; calibrate the temperature control and positioning systems weekly to ensure accuracy; inspect electrical wiring, pneumatic systems, and flux supply lines monthly to identify and address risks such as aging, air leaks, or blockages. Promptly replace worn-out consumable parts—such as suction cups, sealing rings, and welding heads—to prevent a decline in welding precision caused by component aging.
When the equipment is idle for extended periods, take protective measures: disconnect the power, cover the machine with a dust shield, and store it in a dry, well-ventilated environment. Periodically power on and run the machine to prevent moisture accumulation, rust, or mechanical seizing. Maintenance work requires disconnecting the main power supply beforehand and displaying a "Do Not Switch On" warning sign; performing maintenance on live equipment is strictly prohibited to ensure operational safety.
The automatic busbar welding machine for photovoltaic modules presents risks associated with high temperatures, electricity, and mechanical transmission. Operators must strictly adhere to safety protocols and master emergency response procedures to prevent accidents.
Operators must hold the necessary certifications and wear heat-resistant, anti-static protective gear. They must be familiar with equipment operation procedures and safety standards; unauthorized or non-compliant operation is strictly prohibited. During operation, keep limbs away from the welding head and transmission mechanisms, and ensure no foreign objects enter the operating zone to prevent mechanical injuries or burns. The workshop must be well-ventilated to promptly exhaust welding fumes and ensure a safe working environment.
In the event of malfunctions, abnormal noises, smoke, or electrical leakage, immediately press the emergency stop button and cut off the main power. Wait for the equipment to come to a complete stop and cool down before troubleshooting or repairs; dismantling or repairing the machine while it is powered or hot is strictly prohibited. If sudden issues such as cell breakage or batch welding defects occur, immediately stop the machine and quarantine the affected batch. Investigate parameters, equipment, and materials, and resume production only after all hazards have been thoroughly eliminated.
Conduct regular inspections for safety hazards, verifying the effectiveness of grounding devices, insulation, emergency stop systems, and ventilation. Eliminate electrical and mechanical safety risks to ensure the equipment's long-term, safe, and stable operation.
