How much do you know about the photovoltaic module production process?

In the era of sustainable development, photovoltaic energy is reshaping our energy landscape with unprecedented momentum. So, how do those highly efficient and environmentally friendly photovoltaic modules transform from delicate cells into gleaming green power stations on rooftops? Let's delve into the photovoltaic module production line and examine each key step in the manufacturing process.

01. Cell Precision Processing

Laser Scribing: Utilizing high-precision laser technology, cells are meticulously cut to exacting standards, ensuring precise dimensions for each cell and laying a solid foundation for uniform module performance.

 Series Welding: Through precision welding processes, cells are connected in series, establishing initial current transmission paths and ensuring efficient current flow, creating conditions for subsequent efficient power generation.

02. Layout Optimization and Current Convergence

Intelligent Layout: Utilizing automated equipment, cell strings are precisely laid out based on the principle of efficient utilization of solar energy, maximizing the module's photovoltaic conversion efficiency.

 Busbar Welding: Utilizing advanced welding technology, the current from each cell string is converged through busbars, achieving concentrated current output and enhancing the module's overall power generation efficiency.

03. Rigorous Defect Inspection

EL Testing: Utilizing the principle of electroluminescence, non-destructive testing of modules accurately identifies and removes hidden defects such as cracks and debris, ensuring product quality.

04. Efficient Lamination and Packaging

Lamination: Under high temperature and high pressure, the EVA melts, tightly bonding the cell, glass, backsheet, and other module materials together to form a strong and sealed module structure, ensuring long-term stable operation.

05. Fine Edge Trimming

Edge Trimming: Professional edge trimming equipment is used to finely trim module edges, removing excess material and enhancing the module's appearance and practicality.

06. Frame Installation and Junction Box Protection

Frame Reinforcement: An aluminum alloy frame is installed to enhance the module's structural strength and provide external protection to prevent damage to the internal circuitry.

 Junction Box Installation: A waterproof and dustproof junction box is provided to facilitate convenient connection between the module and external devices, ensuring a secure and reliable connection.

07. Strict Performance Testing and Calibration

IV Testing: Comprehensive performance testing of modules is performed using IV testers, calibrating output power to ensure optimal operating conditions.

08. Finished Product Labeling and Classification Management

Labeling and Classification: Each module is assigned a unique identification and performance label, enabling full traceability throughout the production, tracking, management, and sales process, ensuring clear and accurate product quality information.

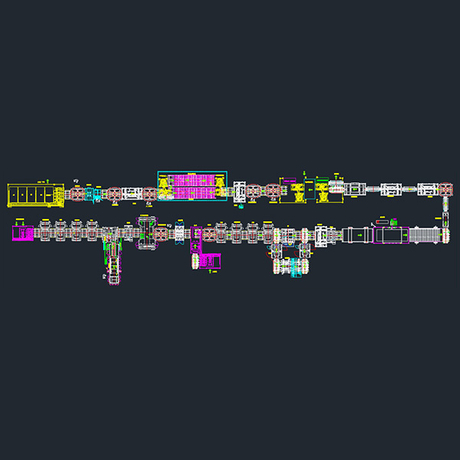

The photovoltaic module manufacturing process exemplifies the perfect fusion of technology and craftsmanship. Zhongbu Qingtian New Energy, a professional supplier of photovoltaic module equipment, is committed to providing customers with turnkey solutions for fully automated photovoltaic module production lines ranging from 10MW to 500MW. Each piece of equipment is rigorously controlled to ensure efficient and high-quality production. With continued technological advancement and further cost reductions, photovoltaic energy is poised to gain wider global application, providing a powerful driving force for sustainable development.
